Special fin profile tooling

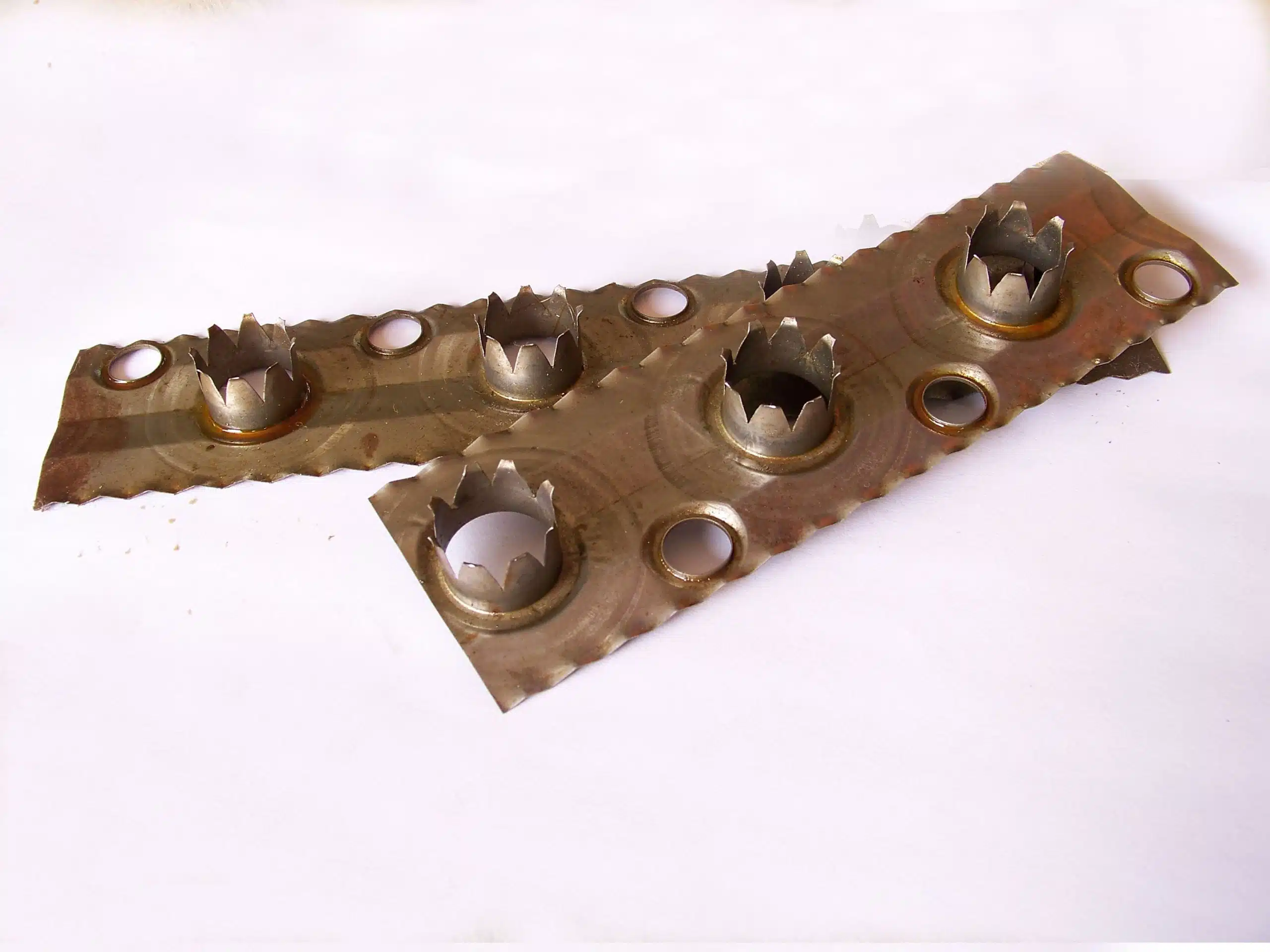

Crown Fin Die for custom heat exchanger fin profiles.

Crown fin and other special fin profiles require application-specific tooling review to confirm the fin shape, material behavior and production stability.

Send crown fin die RFQ

Typical applications

Crown fin die tooling is suitable for special fin patterns where standard flat or louvered fin tooling does not match the heat transfer or assembly requirement.

Design focus

Profile geometryCrown shape, height, pitch and forming sequence.

Material matchMaterial thickness, hardness and forming limit.

Tool layoutPunching, forming, cutting and strip control.

ValidationSample fin review and production speed confirmation.

RFQ details to prepare

Target fin profile drawing or sample photo.
Material, thickness and surface requirement.
Tube matching or assembly requirement.
Target speed and quality standard.
