Application scope
The fin making machine forms heat exchanger fins from coil material. With different molds, it can support aluminum, copper and stainless steel fin production for HVAC, refrigeration and industrial heat exchanger applications.
Fin forming equipment

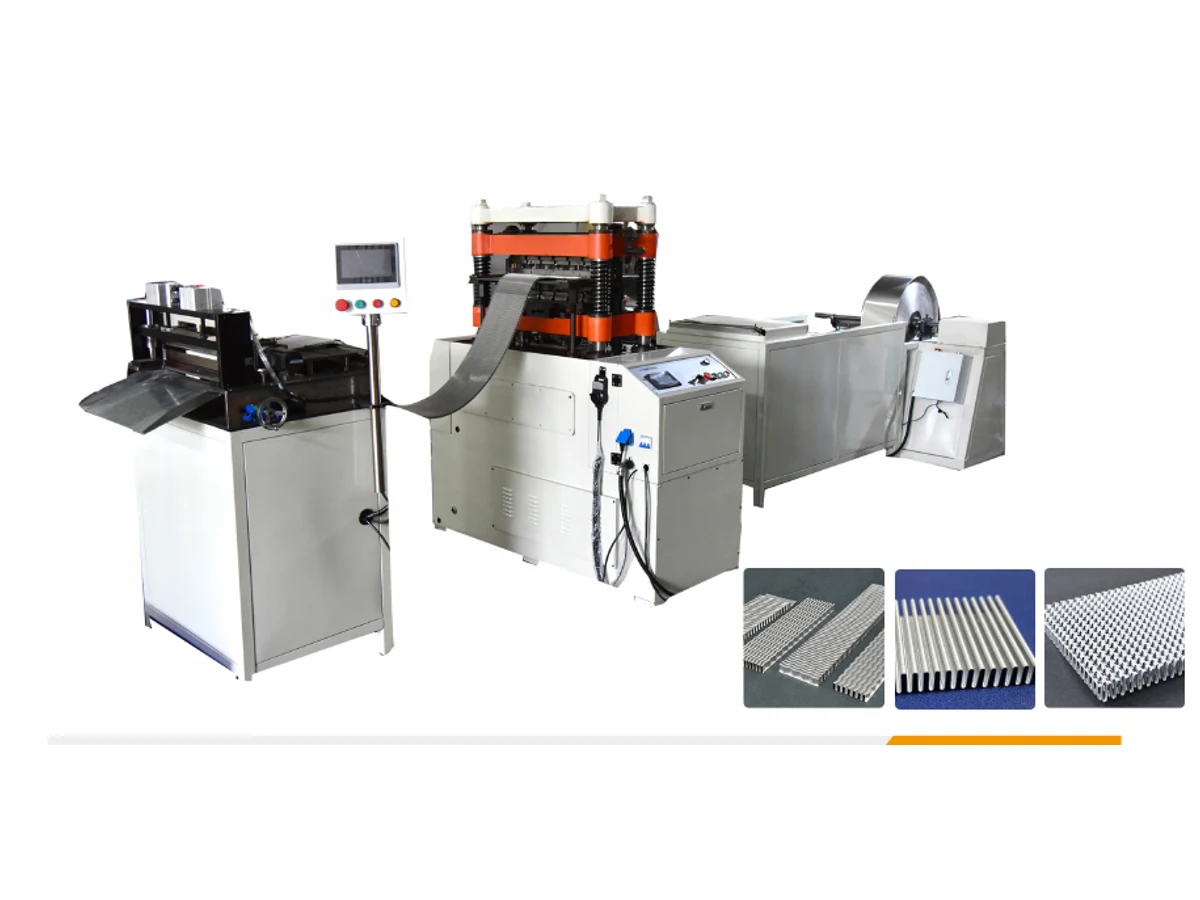

Fin Making Machine for heat exchanger fins.
Sinoak supplies automatic fin making machines for producing aluminum, copper and stainless steel fins used in heat exchangers, with model options for different fin widths and production rates.
Send fin machine RFQ
Catalog model range
| Item | BCX-300 | BCX-450 | BCX-600 |
|---|---|---|---|
| Maximum fin width | 300 mm | 450 mm | 600 mm |
| Maximum material thickness | 0.5 mm | 0.5 mm | 0.5 mm |
| Maximum fin depth | 14 mm | 12 mm | 12 mm |
| Maximum fin pitch | 10 mm | 10 mm | 10 mm |
| Punch rate | 0-100 times/min | 0-90 times/min | 0-80 times/min |
| Voltage | 380 V | 380 V | 380 V |
| Power | 3 kW | 5.5 kW | 7.5 kW |
Selection points
Fin materialConfirm aluminum, copper, stainless steel or another project-specific material.
Fin geometryProvide fin width, depth, pitch, hole pattern and any sample or drawing available.
Mold matchingDifferent molds are used to produce different heat exchanger fin types and sizes.
Production targetConfirm expected output, voltage, operator workflow and factory layout.
RFQ details to prepare
- Fin drawing or sample photo.
- Material, thickness, target width, fin depth and fin pitch.
- Required punch rate or daily production target.
- Voltage, available air supply and factory layout if line matching is needed.
